FIBER SPINNING LINE

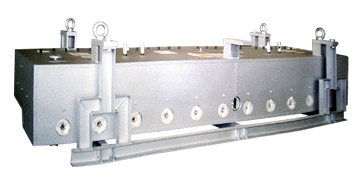

Spin Beam



Self-sealing spin packs: The self-sealing principle of the spin pack prevents leakage at start-up, during long-time operation, and at high pressures. The spin pack is easily assembled. All parts, such as spinneret, screens, seal, etc., are assembled together without bolts. The spin packs are suitable for all currently available filter media.

Less heart loss: The compact design of a spinning beam and the resulting small surface keep the heat loss to an absolute minimum. Sufficient insulation further contributes to the utmost economy in energy consumption.

Installation of the spin pack from below: The installation of the spin pack from below is easy and convenient with no need to remove insulation material. With three revolutions and a special key, the spin pack is screwed onto a thread. Assembling and disassembling do not require big torques.

polyester staple fiber spin beam

Quenching Device

  In – to – out Quenching Device                        Out – to – in Quenching Device

In – to – out quenching device: Low-pressure in-to-out open quenching system, Open window type, Quenching from inner to outer radial blowing, Max quenching air pressure 2500Pa, The low-damping rectifier is easy to clean. Adopts the annular spin finishing slit in the quenching window.

Out – to – in quenching device: It adopts the form of a completely sealed annular quenching system with automatic adjustment on the valve. Tow spin finishing adopts slit preparation ring and preparation is at the inner side of the ring. The rectifier is easy to mount and clean.

polyester staple fiber quenching
polyester staple fiber quenching

Draw off Wall and Spin Finish Application System





Draw-off machine  &  spin finish application system for draw-off

Stainless steel surface draw-off wall in 1 section, 8 positions each,   Two-sides spin finish application with an integral system of spin finish supply, distribution, and circulation. Application wheel driving, individual motor controlled by one inverter, Tow roll, Tow holding roll, Tow cutter, Waste aspirator, Suction gun, V type tow roll, Front panel,  Spin finish recycle collection device for drawing off.

Recycled psf machinery
Recycled pet fiber machinery

Feeding and Can Traverse device



Feeding Machine                                         Can Traverse Device

The feeding machine adopts the combined form of sunflower and guiding roller. The surface of rollers is coated with AL2O3. The guiding rollers are driven by an asynchronous motor controlled by coder through high precise gear. The material of guiding rollers adopts aluminum alloy to reduce the unbalance centrifugal power when running. Can traversing device, Tow cutter, Full can pusher.

Recycled psf production line
polyester fiber can traverse
Recycled psf spinning production line
